Project
A crawl space drain trench, dug then graveled
An open trench along a block wall with black perforated drain pipe laid in it, then the same trench filled with clean gravel. The drainage step that has to happen before any liner goes down.
Same job, before and after
An open trench to a gravel-filled drain
Two photos from the same Watertight job, one taken before the gravel went in and one after. Nothing staged, nothing stock.
Same job, before and after
Watertight's own technicians
Lifetime, transferable
Before
Where it started
A trench along the base of the block wall, with black corrugated drain pipe laid in it and a crew member in coveralls working at the far end. The pipe sits at the low point so water reaches it before it reaches the floor of the crawl space.
After
How it was left

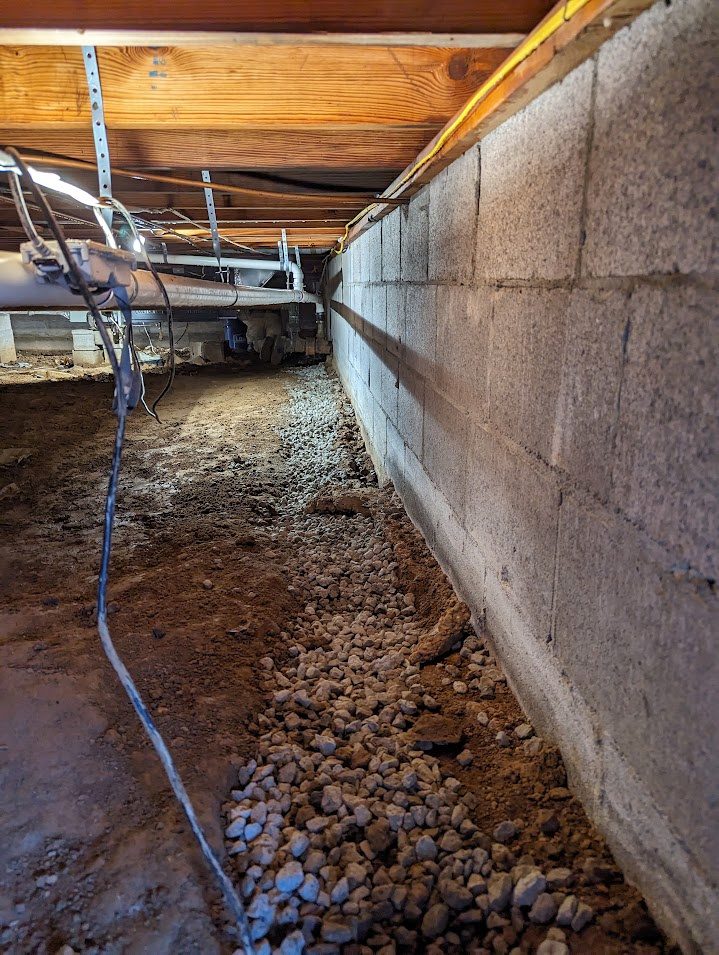

The same wall and the same run, now filled with washed gravel over the pipe. Water drains through the gravel into the pipe and on to the sump. The liner goes over this, not under it.
The work
How a job like this goes
Crawl space waterproofing trenches the perimeter, sets perforated drain tile in washed gravel, and routes it to a sealed sump basin at the low point with a discharge line run well away from the house. Only then is the space lined or encapsulated, on dry ground.
- Perimeter trench along the wall
- Perforated pipe in washed gravel
- Sealed sump, pump, discharge away from the house
- Liner or encapsulation over dry ground
